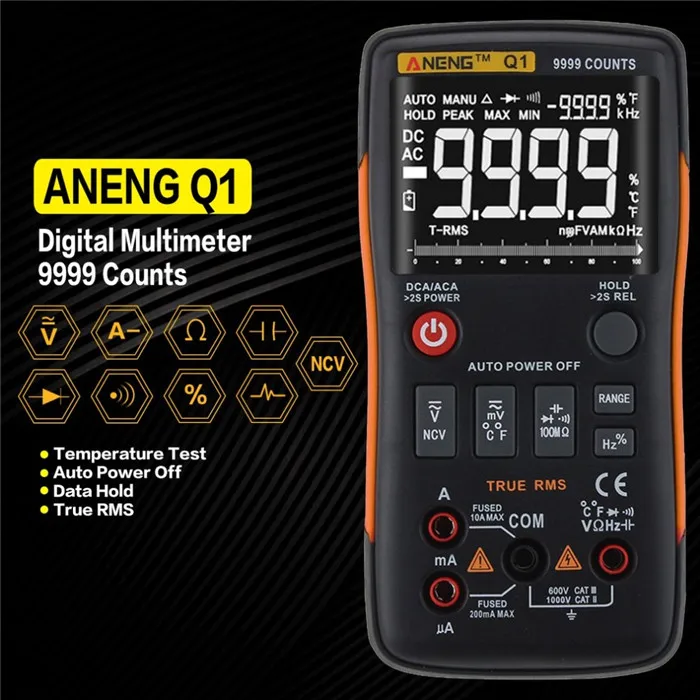

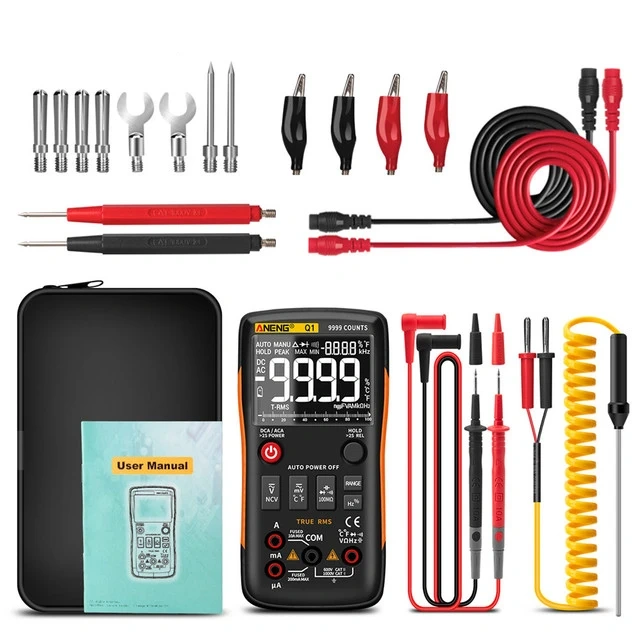

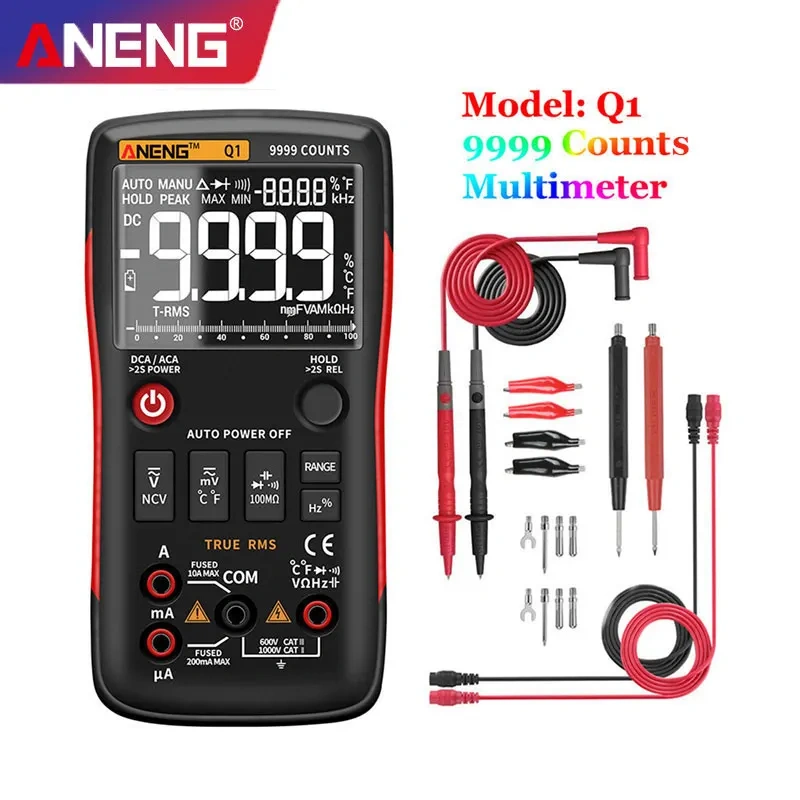

ANENG Q1 Digital Multimeter 9999 Counts Profesional Analog Multimetro DIY Transistor Capacitor NCV Testers Lcr AC DC Meter
Operating specification:
Model: Q1
Working temperature: 0-40℃
Working humidity: ≤75%rh
Storage conditions: -20~60℃
Storage humidity: ≤80%rh
DIY Supplies: Electrical
Working mode: automatic/manual ranging
Measuring inductance range: no

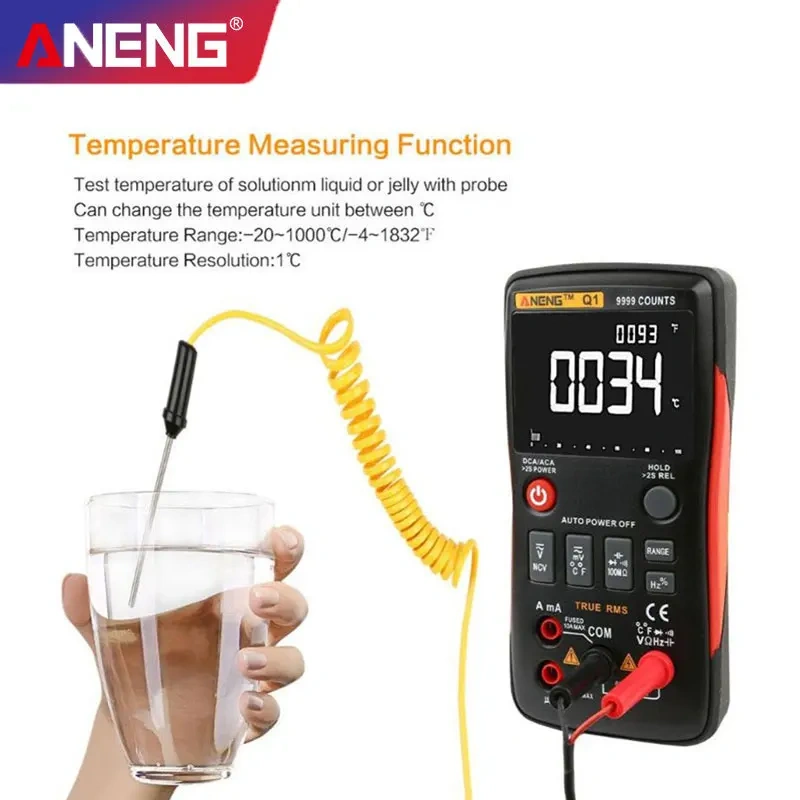

Measuring temperature range: -20~1000 C/-4F-1832F
Measuring capacitance range: 9.99nF/99.99nF/999.9nF/9.99uf/99.99uf/999.9uf/9.999mF
Measuring voltage range: 999.9mV/9.999V/99.99V/999.9V
Measuring current range: 999.9ua/99.99ua/999.9ma/10a
Measuring resistance range: 99.99/999.9/9.999K/99.99K/999.9K/9.999M/99.99M ohm
Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5MHz
Display type: digital display
Diode Test: Yes
Continuity: yes
Duty cycle: 1%-99%
Sampling rate: 3 times per second
Power supply: 2*1.5V AA batteries (AAA batteries)
Notes:
1. hall not exceed the "maximum value" stated in the specification;
2. Do not input voltage in current mode, resistance mode, diode mode, continuity mode or temperature mode;
3. Do not use this product if the battery or battery cover is improperly placed;

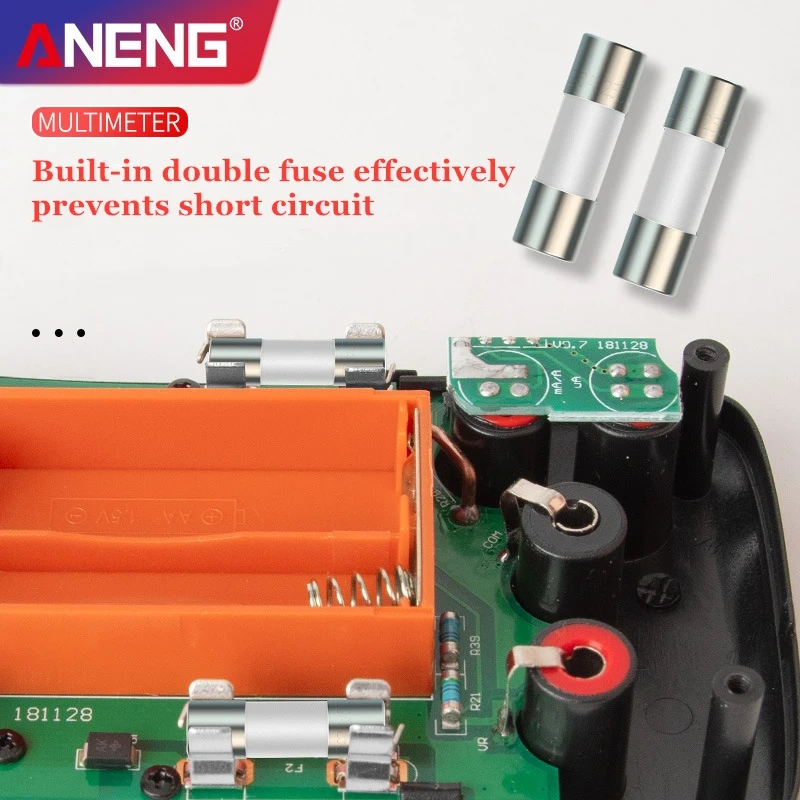

4. Before replacing the battery or fuse, turn off the Product and remove the test leads from the test points.
5. When measuring the current setting, the input voltage must not exceed 36V dc or 25V ac
