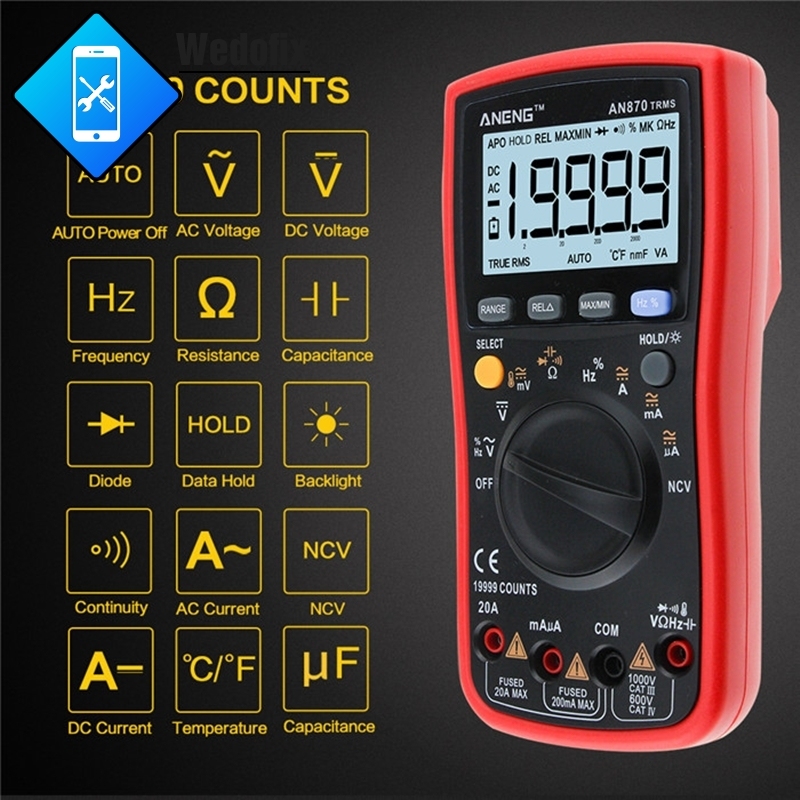

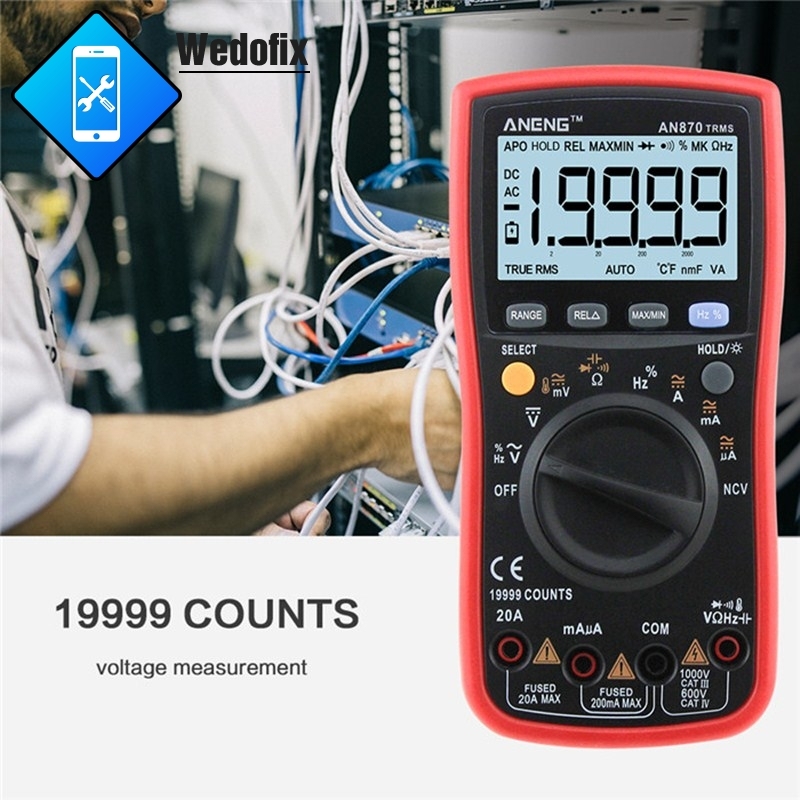

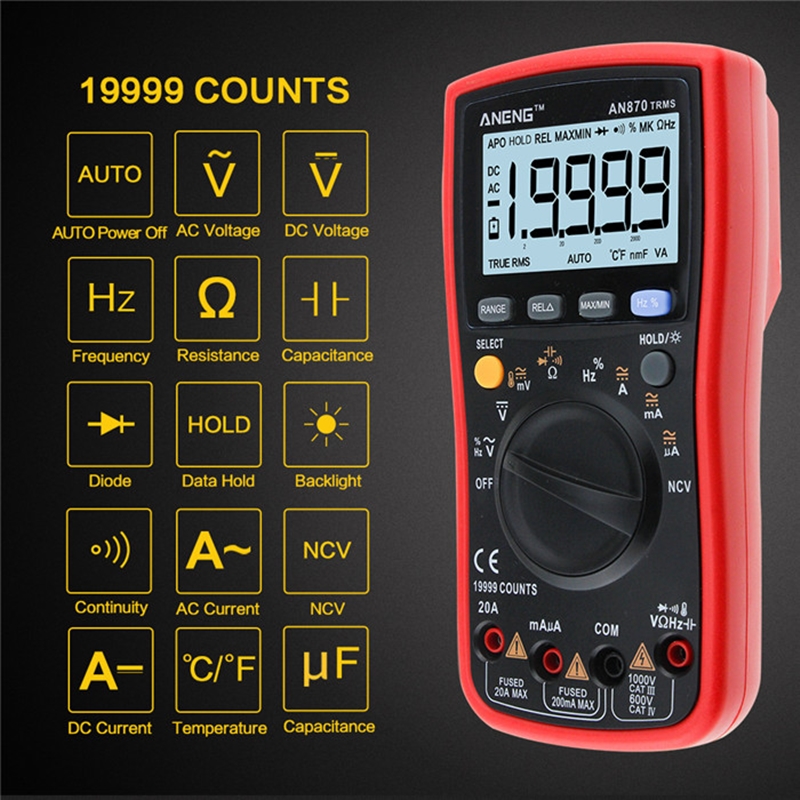

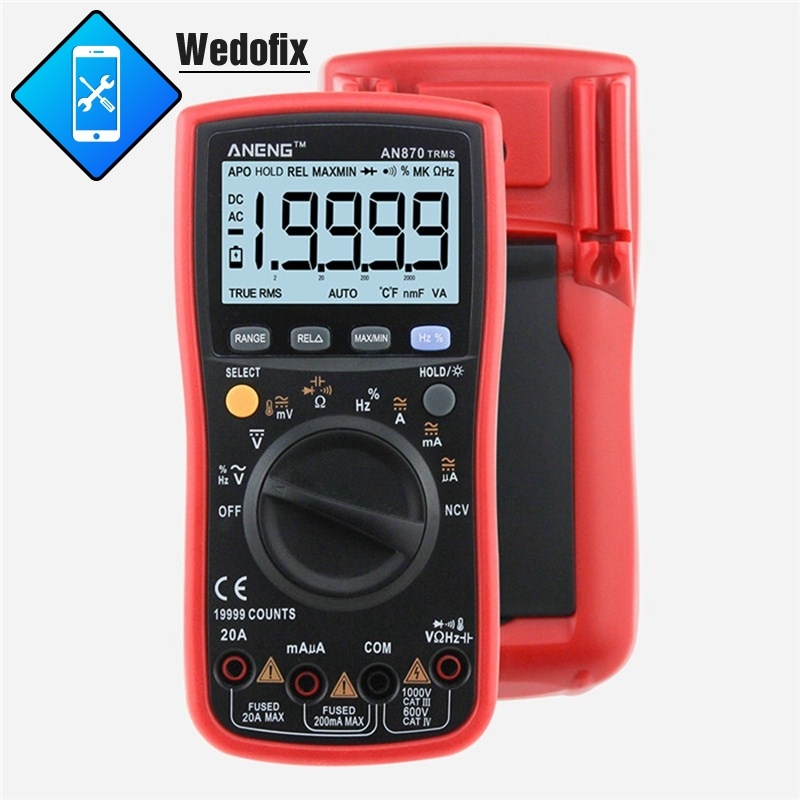

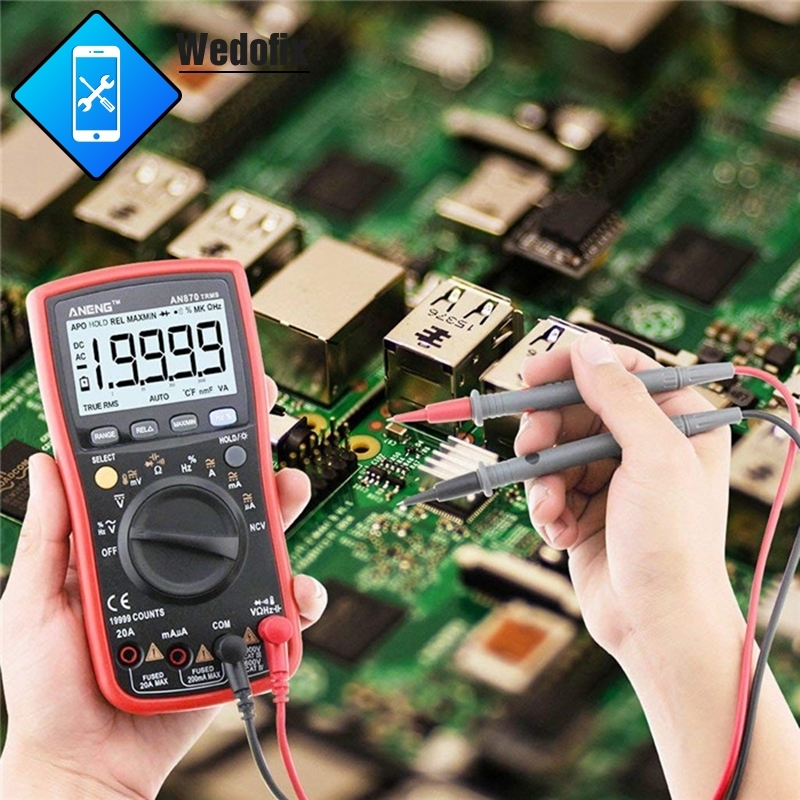

AN870 is a battery-powered,True-RMS, auto-ranging digital multimeter with a 19999 LCD display and a backlight.
Specification:
Brand Name: ANENG
Model Number: AN870
Operating Mode:Auto/Manual Ranging
Measuring Current Range:(199.99-1999.9)uA/(19.999-199.99)mA/1.9999-199.99uA
Measuring Voltage Range:19.999mV/199.99mV/1.9999V/19.999V/199.99V/750ACV(1000DCV)
Measuring Inductance Range:no
Display Type:Digital Display
Measuring Capacitance Range:9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999MF
Measuring Resistance Range:199.99/1.9999K/19.999k/199.99k/1.9999M/19.999M/199.99M
Frequency:99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz
Temperature:-20~1000°/-4~1832°
Diode Test:Yes
Duty Cycle:1%-99%
Continuity:Yes
NCV:Yes
Auto-Power Off:Yes
Battery Type:2*1.5V AA (not included)

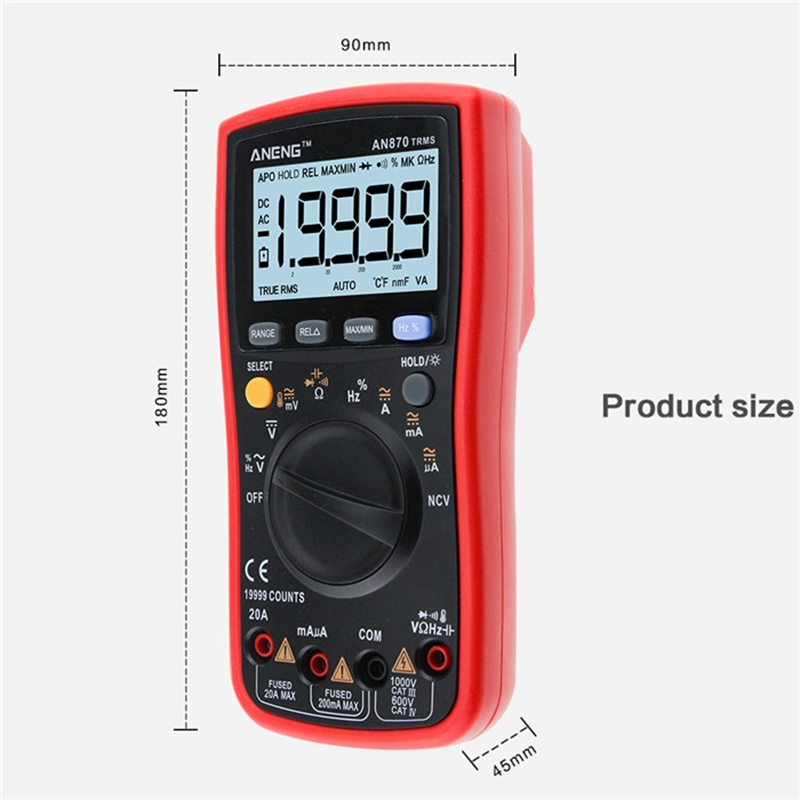

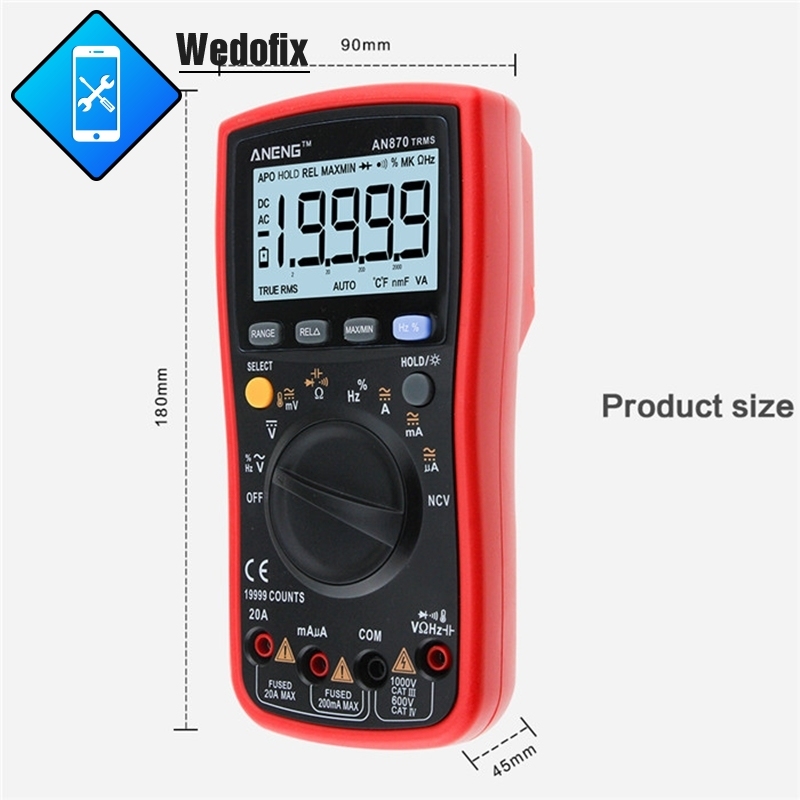

Dimensions: Approx 180x90x45 mm
Operating Temperature:0 - 40 °

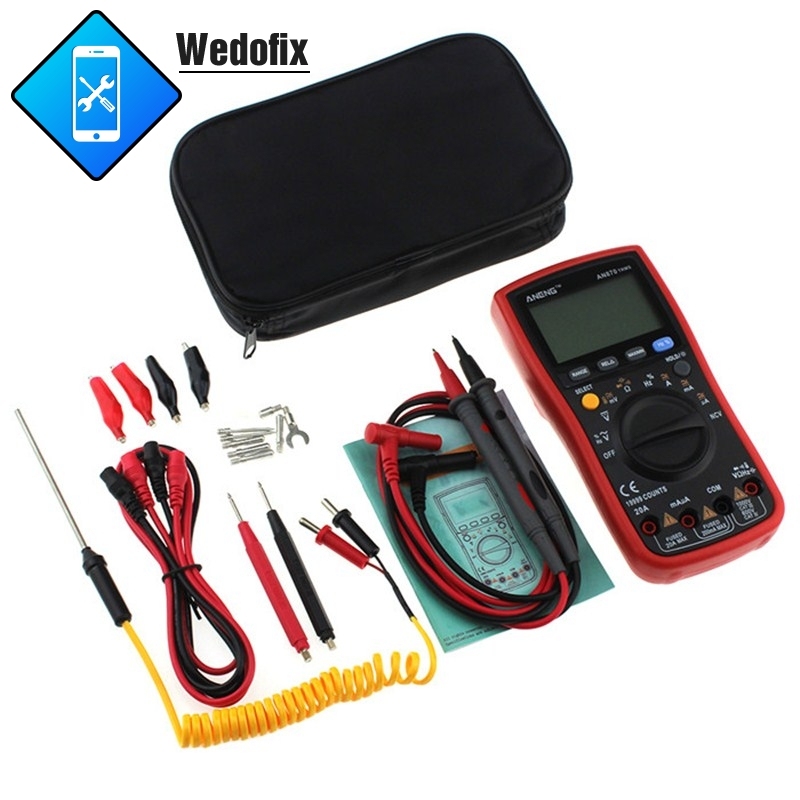

Package includes:
1 x Multimeter
1 x Test lead+temperature sensor
2 x Test Leads (Red+black)
1 x 16 in 1 Multifunctional Test Line
1 x Storage Bag
1 x User's Manual
