The main parameters:
1: Pixel: HD 360,000 pixels
2: Display: 4.3-inch high-definition display.
4: Magnification: 1-600 times continuous amplification system.

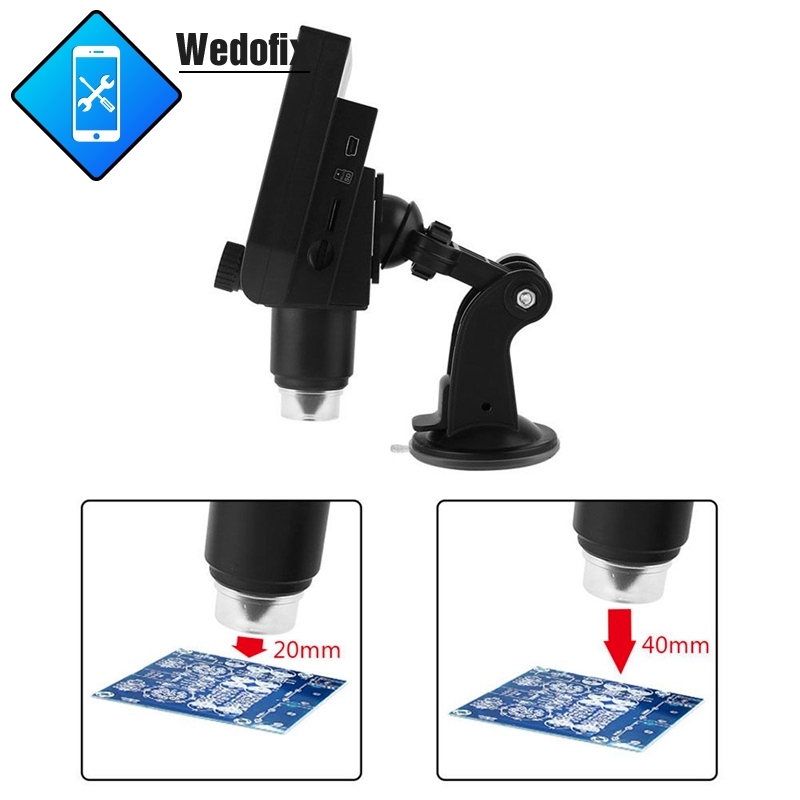

5: object distance: 15MM to infinity (different object distances correspond to different multiples)
6: Built-in super lithium battery, can work continuously for more than 6 hours.
7: Sixteen language systems: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portuguese, German, French, Italian, Turkish, Czech, Polish, Traditional Chinese, Simplified Chinese.
This microscope is equipped with a large-capacity lithium battery. The full-charge time takes about 4 hours. When charging, it shows that when the battery is displayed on the screen, it means it is fully charged.
Turn the power on/off button for one second, then press it for one second to turn it off.
Function setting button:
Resolution: 1080P, 720P, VGA
Time switch: on/off
Motion detection: On/Off (Automatically turn on the recording function if there is an object moving under the lens when it is turned on, no manual operation is required.)
Loop recording: Off / 3 minutes / 5 minutes / 10 minutes, after the flash card is full, the video data of the front will be deleted, and then the video will be saved.
Exposure value: +2.0\(0.0)\-2.0
Format: Yse / NO
Languages: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portuguese, German, French, Italian, Turkish, Czech, Polish, Traditional Chinese, Simplified Chinese.
Auto power off: off, 1 minute, 3 minutes,
Automatic screen off: off, 1, 3, 5 minutes
Factory reset: Yes / No
Light source frequency: 50HZ, 60HZ
Time setting: year, month, day, hour, minute, second
Picture rotation: on/off
Fill light: on/off
Software version: V1.10
: Mode button:
Camera mode: Camera mode: (5M, 2M, 1.3M, VGA) Press OK to take a photo
Playback mode: delete, lock / unlock
Up button, down button, OK button (photo/video, open button)

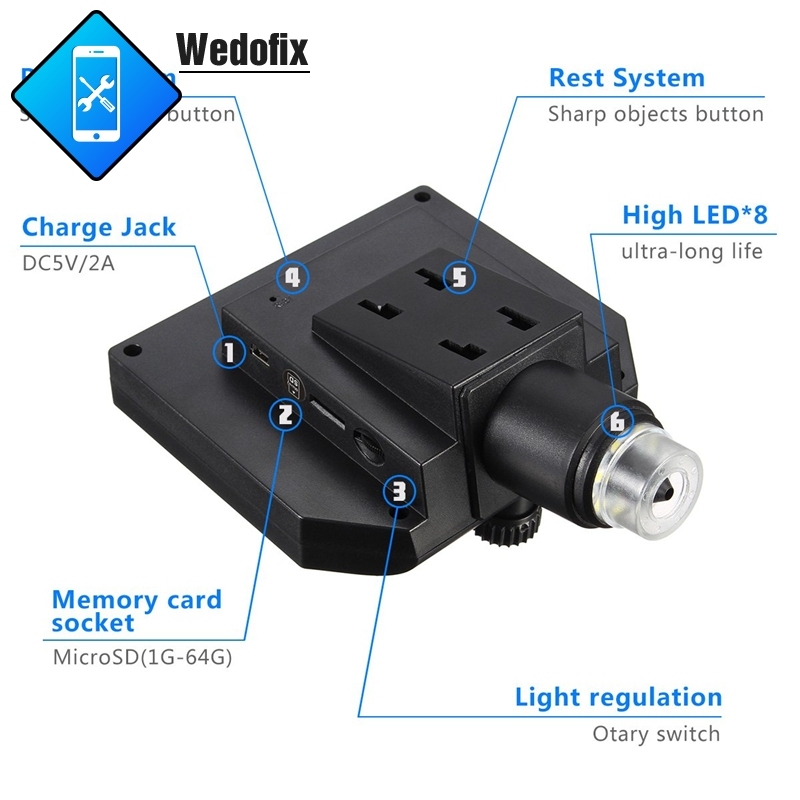

1: Power DC interface (MINI 5P).
2: Flash card socket (MicroSD), supports 1-64GB.
3: Light level adjuster.
4: REST button, system restore button. (If the machine does not work, use a needle-like sharp object to press the button in the hole to restart the machine)
5: Quickly install the 4-hole bayonet. The corresponding 4-claw deck on the bracket is inserted and pushed up, and you will hear the sound of the cymbal.
6: Highlight 8 LED lights, with a continuous service life of up to 100,000 hours.
