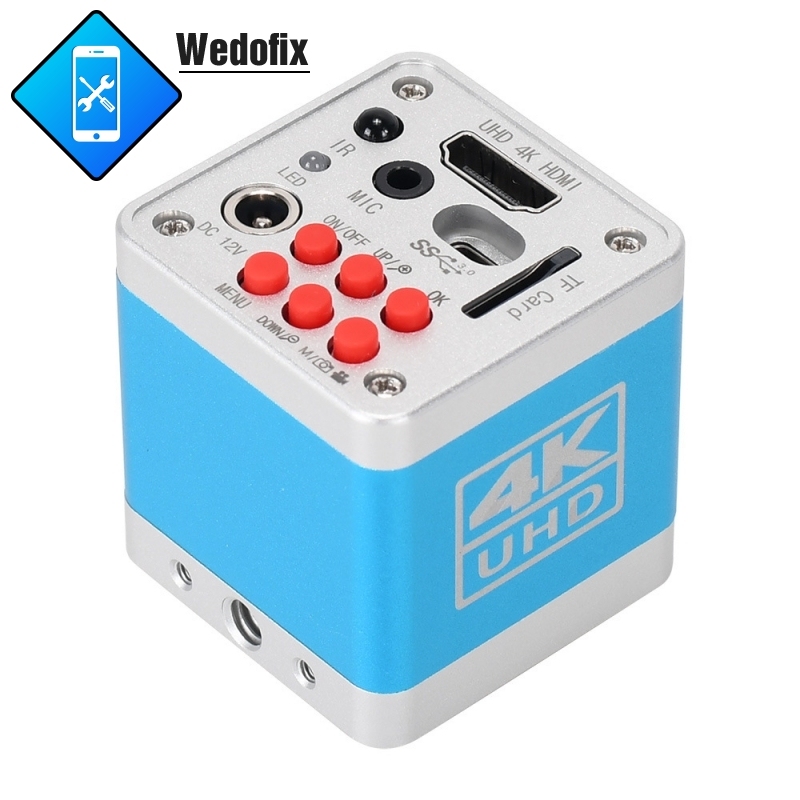

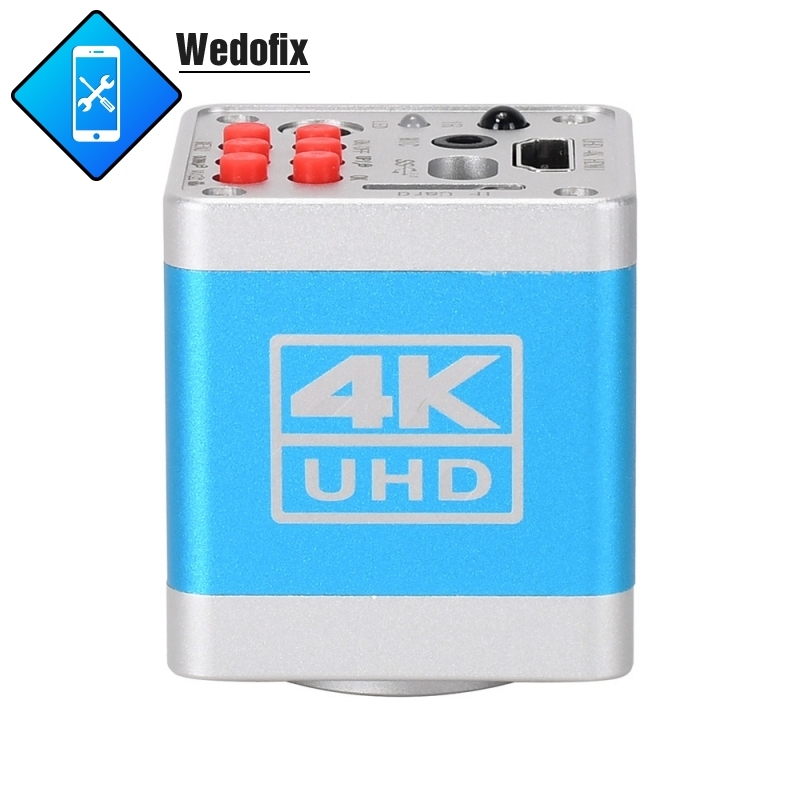

4K HD Camera Microscope Camera Electronics Eyepiece Industrial Camera for Mobile Phone Repair Micro Work

Camera Features:
Sensor: SONY IMX334
Real-time output resolution: 4K/2K/1080P
Sensor Size: 1/1.8 inch
Pixel Size: 2.0 x 2.0 μm
Image Resolution: 8528 x 4808 (41 MegaPixel)
Frame rate: 3840 x 2160 @30FPS(4K); 1080P @60FPS
Image Format: JPEG
Wave Length[nm]: 400nm~1000nm

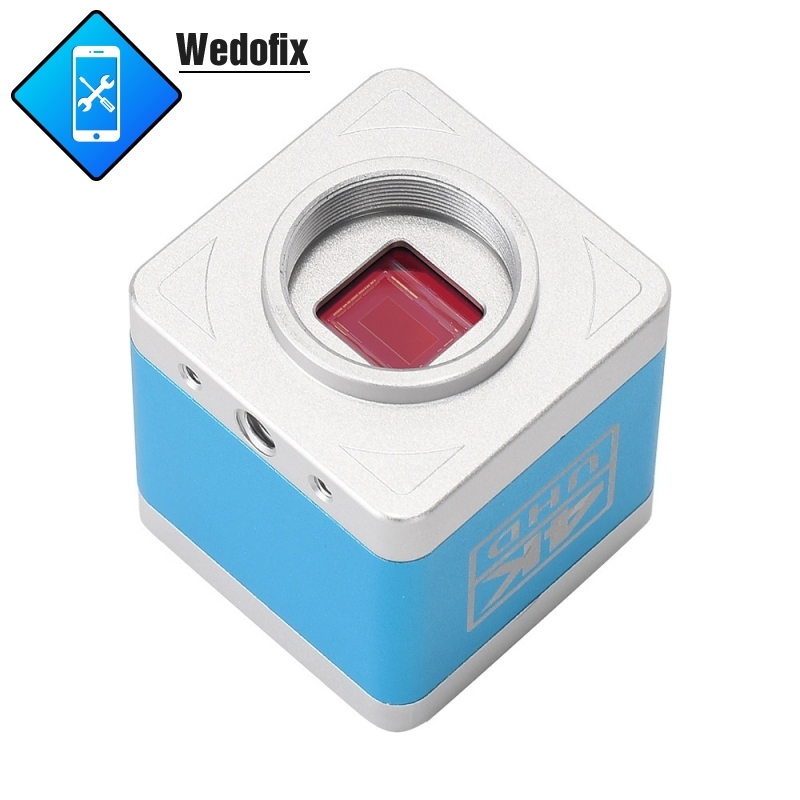

Lens Type: C/CS Mount
Storage: TF Card, Maximum support 256G (TF card is not included)
PC Support:Windows / Mac / Linux, PC Software with Measuring Function
Image Measurement: Support HAYEAR Measurement
Language: Chinese, English, Japanese, French, German, Russian, Italian, Korean, Turkish
Output Interface: HDMI / USB Type-C 3.0 interface
HDR Function: Support HDR,Multiple exposure HDR, Digital overlap HDR
Video output interface: HDMI/USB dual interface can output image simultaneously
Timer function: Support taking pictures/video recording at specified time
Comparison on the same screen: Real-time observation and comparison of two products
White Balance: Support One-click, Auto and Manual white balance
Image Zoom: 7x digital zoom
Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable Different color,5 horizontal line, 5 vertical line, any positions
Exposure: Auto/Manual, value adjustable
Encode: H.264 /H.265 (High Profile)
Video format: Video format
Input Voltage: Type-C 5V / DC 12V 1A

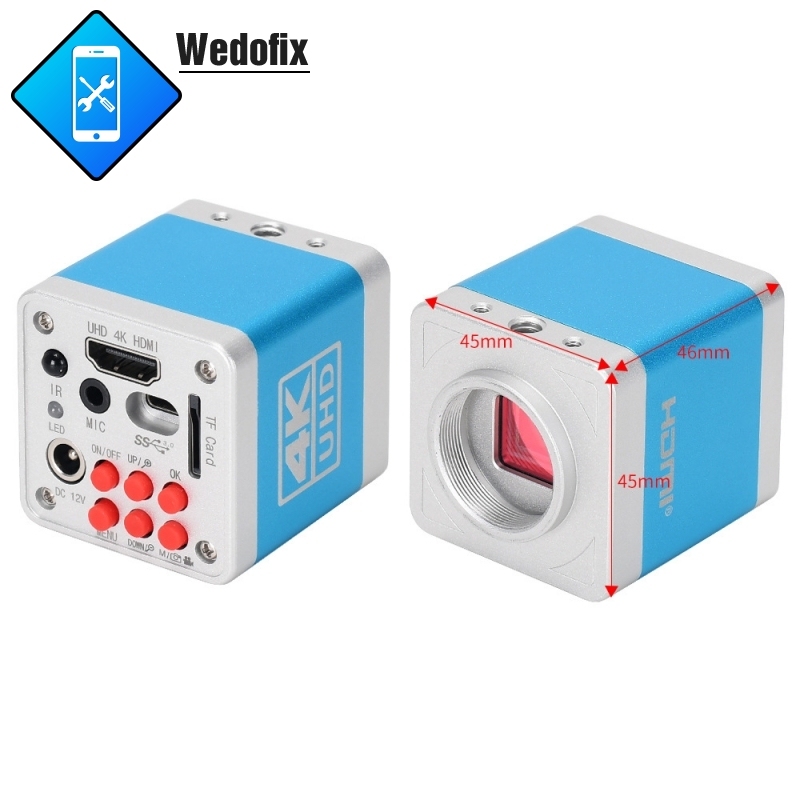

Size: 45×45×53mm

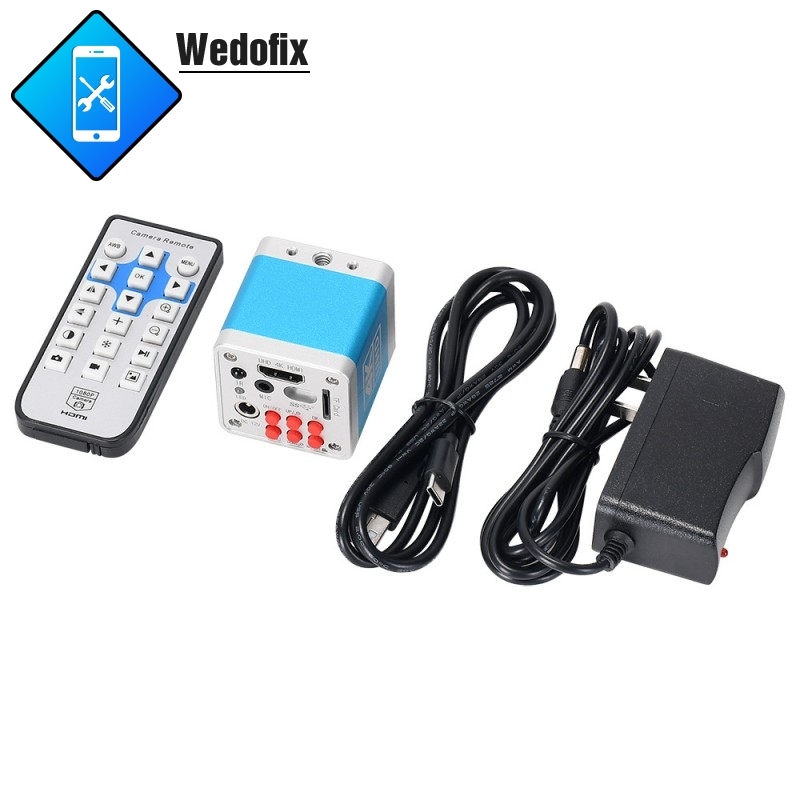

Package including:
1 x 4K Microscope Camera HY-6110
1 x Power supply
1 x USB line
1 x Software (Online download)

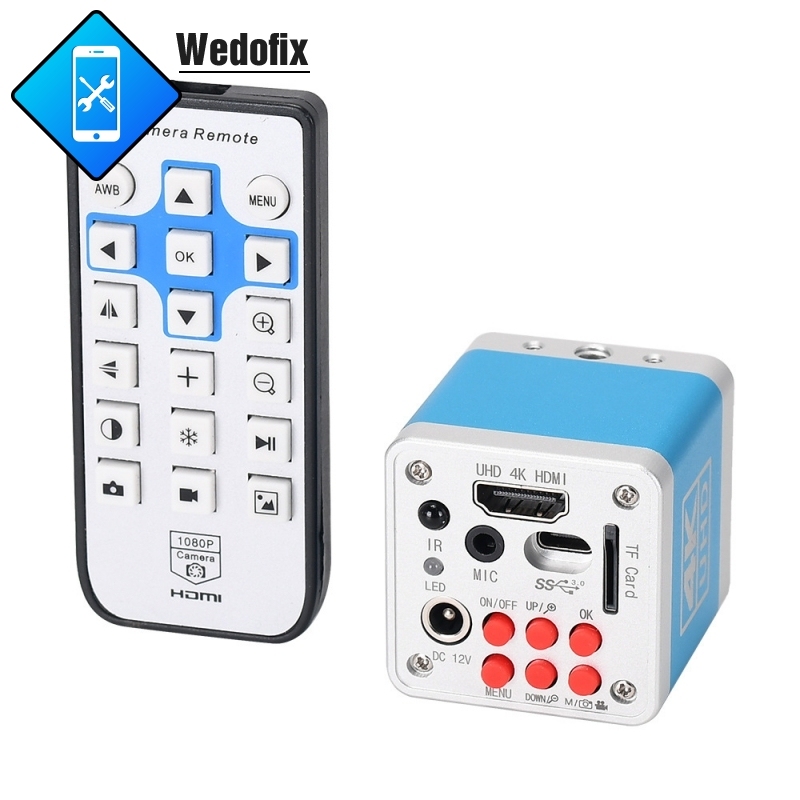

1 x Remote Control
