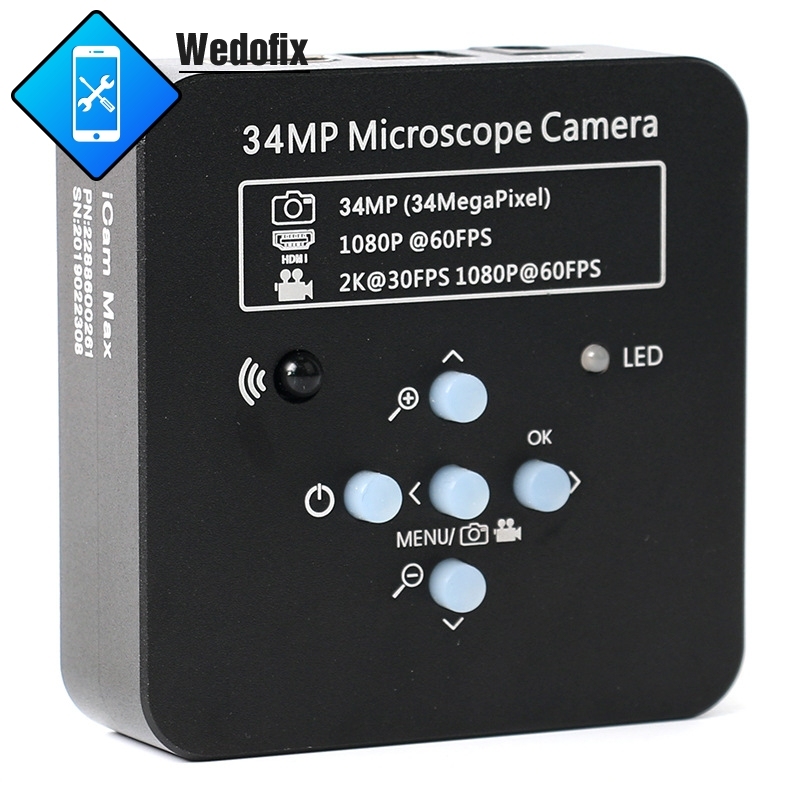

34 MP Industrial Camera HDMI USB Electronic Video Microscope for Mobile Phone Micro Soldering Repair
Camera parameters:
>Sensor: 1/2.3-inch 34-megapixel CMOS sensor
>Using a 1/2.3-inch image sensor, the viewing angle is wider than 1/3-inch.
>Pixel size: 1.335μm × 1.335μm
>HDMI output: 1920*1080 60 frames
>USB drive-free output 1080P 30-frame image output.
>Support 2.5K video recording
>USB output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
>Support 5X electronic digital zoom function.

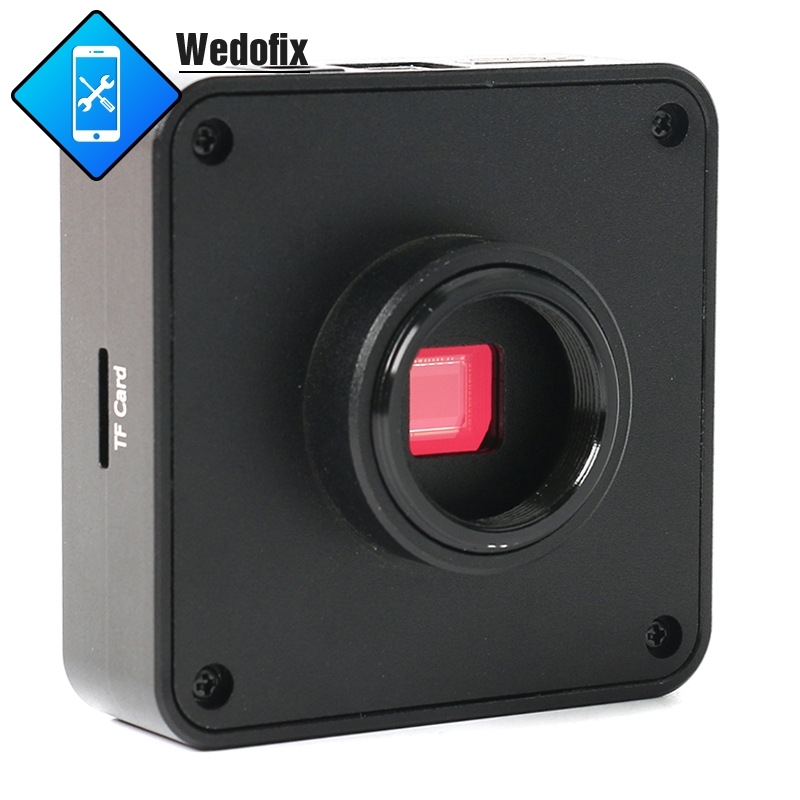

>Lens mount: C/CS
>Exposure: Auto/Manual
>White Balance: Auto/Manual, supports manual RGB adjustment
>Storage: Maximum support 64GB
>Input voltage: DC 12V
>Centerline: Center scale crosshairs on/off
>Provide 10 line drawing functions, line color, thickness and position can be adjusted
>Support remote control operation, clearer images without shaking when taking pictures.
>Menu language: English/Chinese/Japanese/French/German/Spanish/
>Remote control: support remote control operation
>Support shutdown setting parameter saving.
>Net weight: 250 grams.

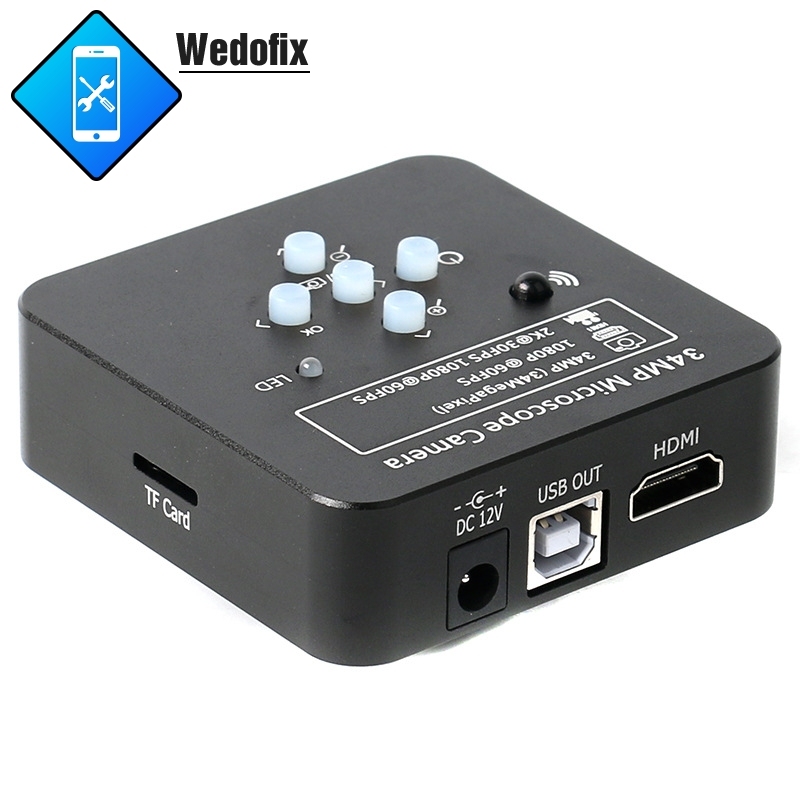

Interface Description:
1. HDMI high-definition video output interface.
2. USB B-type high-definition video output interface.
3. T-flash card socket.
4. DC interface (Note: DC 12V).

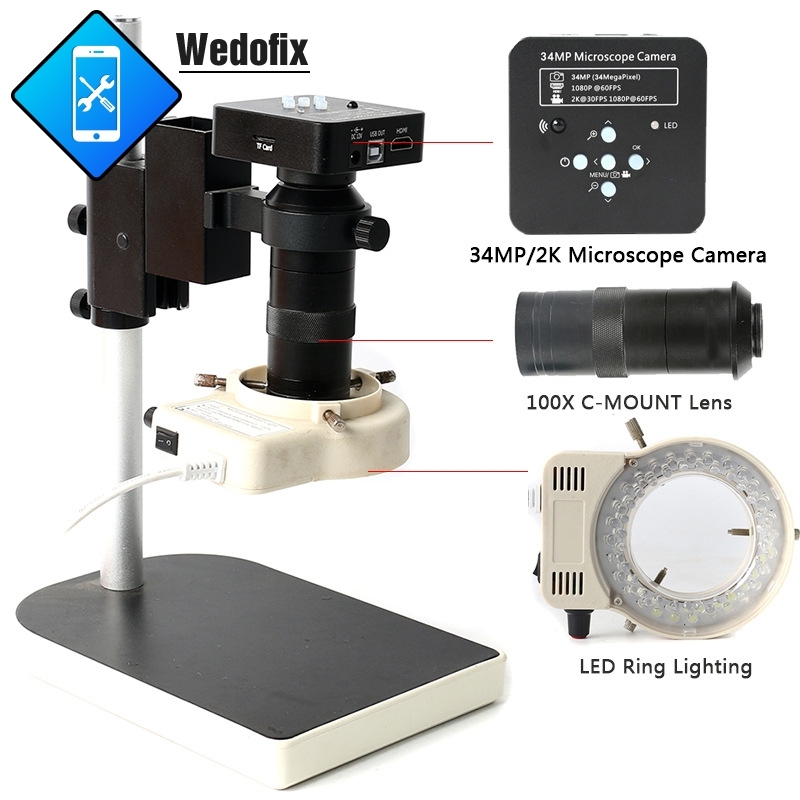

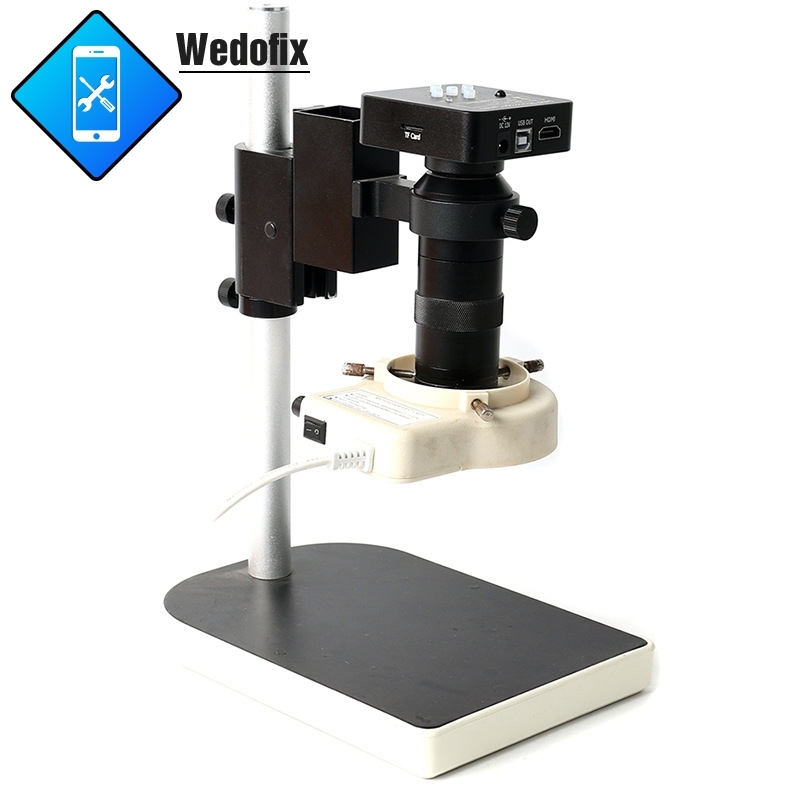

Packing list
1x 34MP HDMI USB Industrial Camera; 1x Power Adapter; 1x HDMI cable; 1x USB cable; 1x Software CD; 1x 8G TF card; 1x bracket; 1x lens;1x Ring Light; Weight: 2.2kg.
