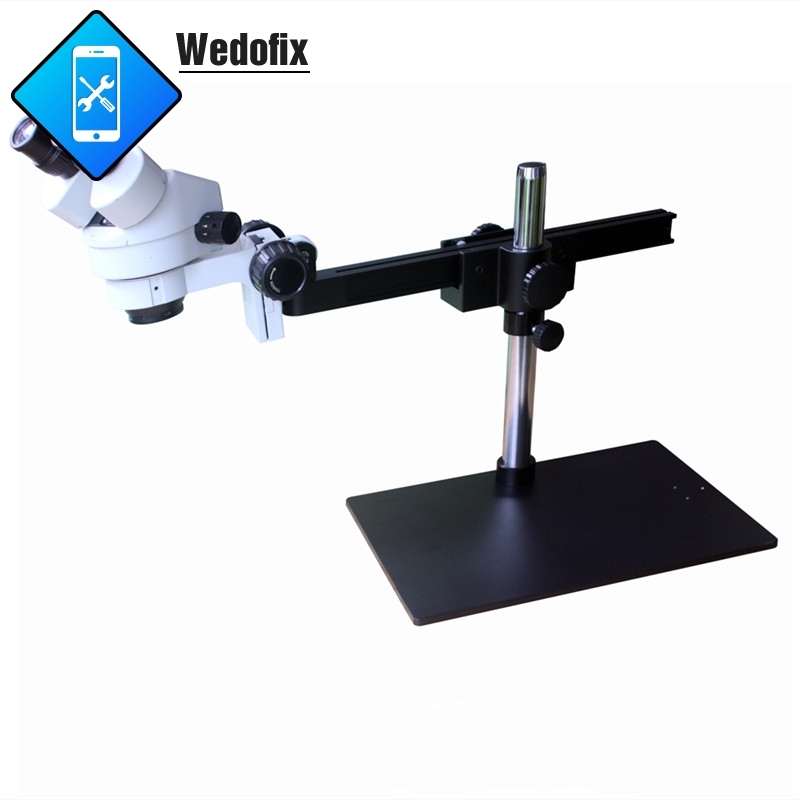

14X-90X binocular Microscope with 45 degrees Tilt 360 Degrees Rotating 0.7X ~ 4.5X continuous zoom for iPhone Microsolder Repair

Product Features:

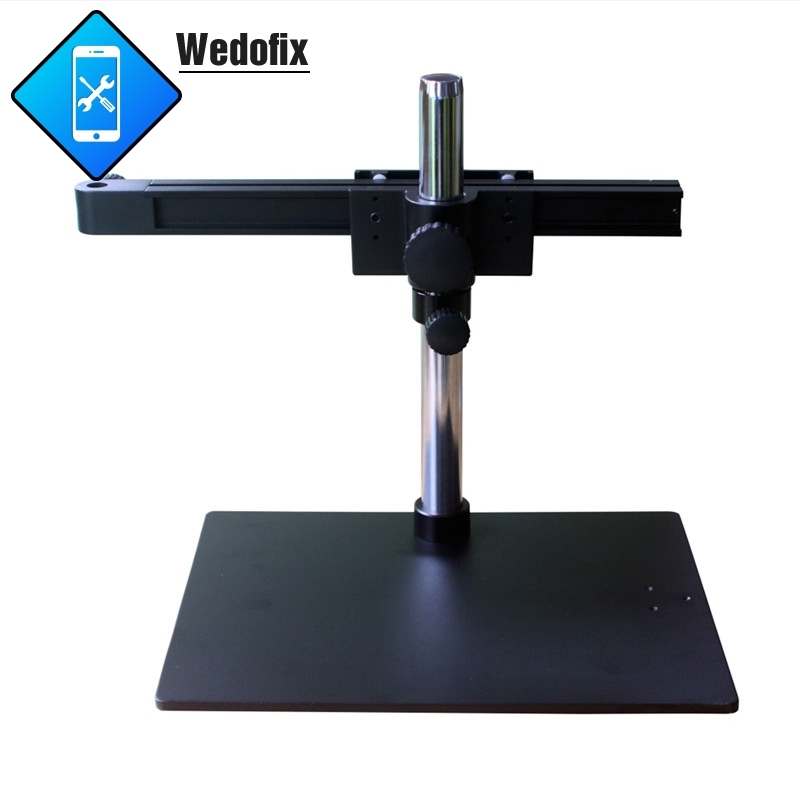

1: the first big rail bracket design, easy transformation point of view. , no matter where to find you the right track

2: large plate design 380 mm * 280 mm, add a set of positioning hole, meet different work habits

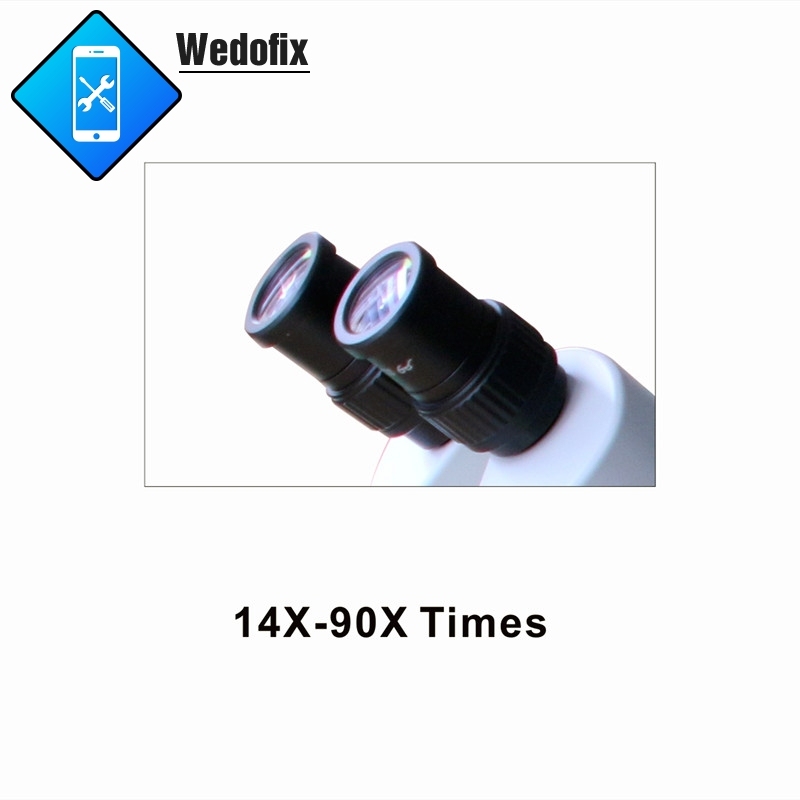

3:14X-90X times

4: high quality imaging effect, make your work more comfortable

5: accord with the structure of the man-machine engineering design, best eyespots height, long time use without feeling tired

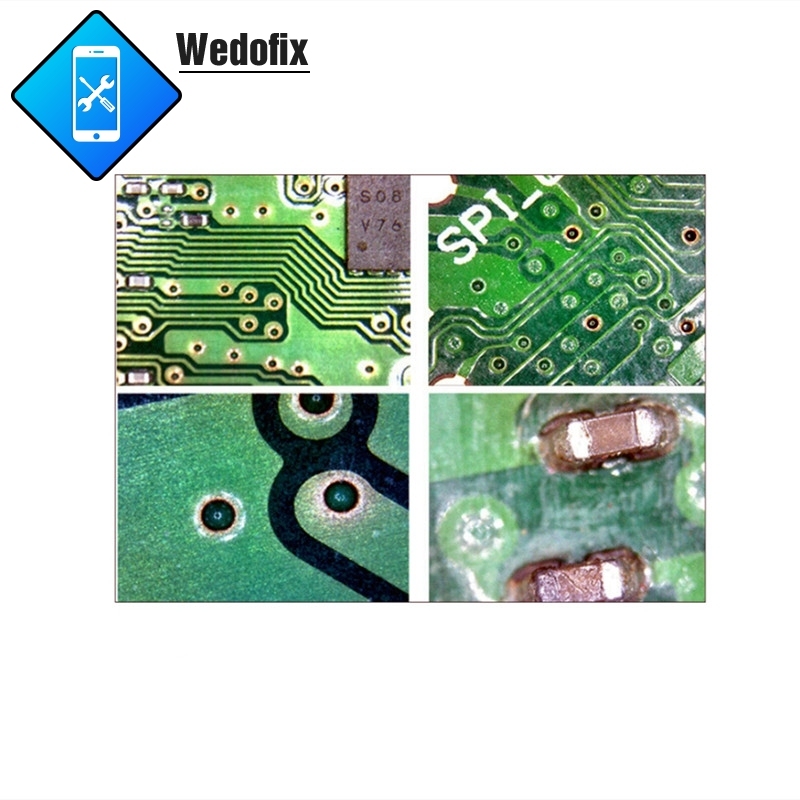

6: formed in large field of view as flat as surface and good contrast, especially in the peripheral view the image more bright and clear

Product SPEC:
Magnification ：14X-90X

Objective lens：Standard configuration: 0.7X ~ 4.5X continuous zoom lens zoom, ratio 6.3:1 to ensure that the image plane parfocality。

Observation head：45 degrees tilt, rotate 360 degrees, interpupillary distance 54~76mm, bilateral diopter adjustment (+/-5), mesh splitting ratio: 20%/80%

Eyepiece：Standard configuration: WF20X/10, wide field of view, wide angle, high focus, to provide convenience for the observer who wearing glasses

Working distance:Standard configuration:100mm (effective distance)  add 0.5x optional auxiliary objective can be extended to 177mm

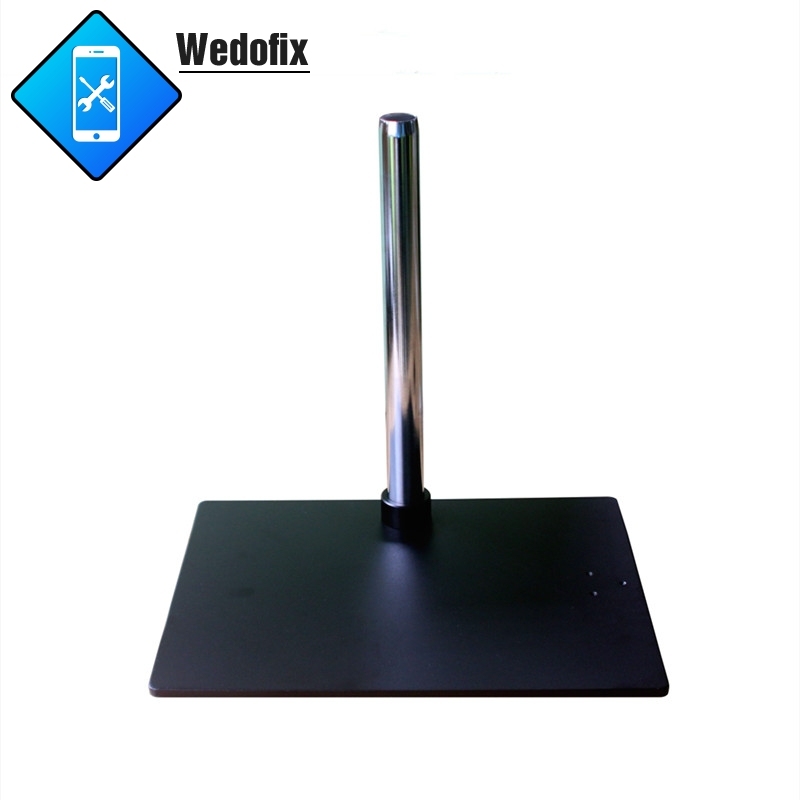

Base size:380mm*280mm

Columns:150mm

Craft :450mm

Light source:LED

Focusing mechanism:adjustable focus hand wheel, lift range is 50mm
