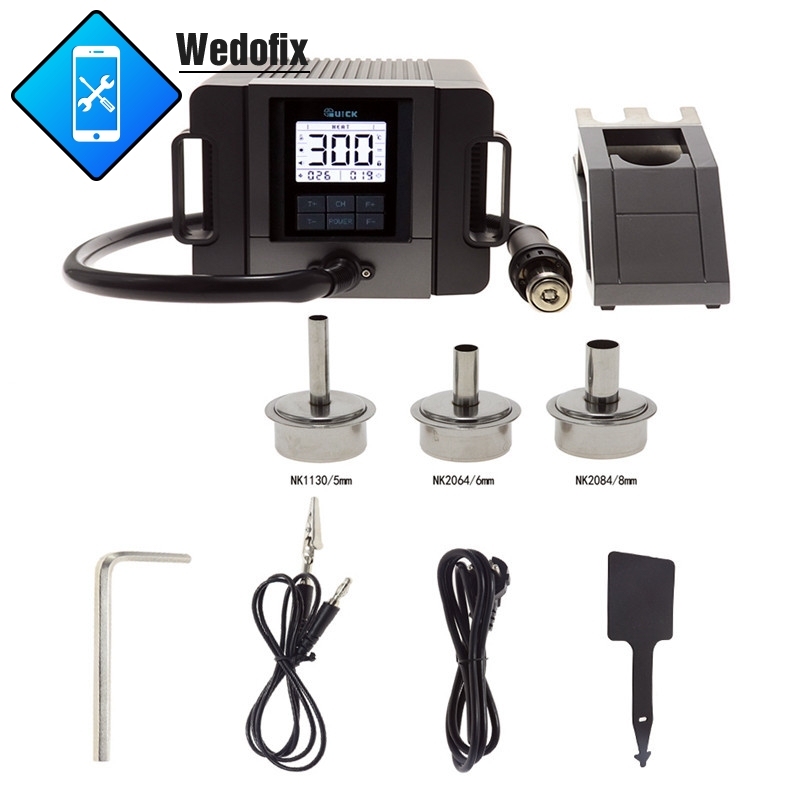

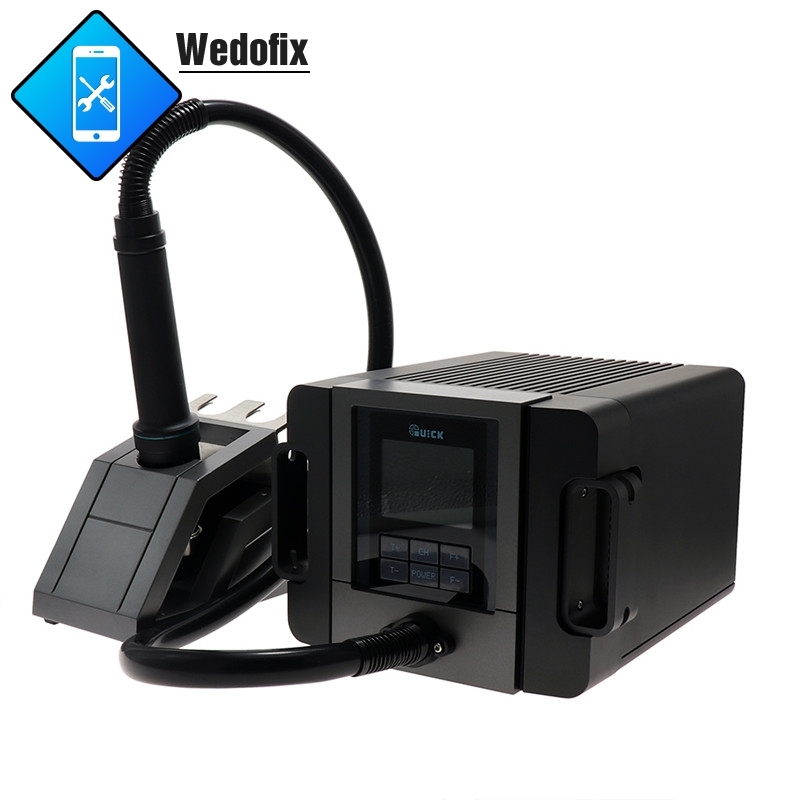

QUICK TR1300A 1300W Hot Air Rework Station with Digital Display for Phone Microsolder Repair
Specifications:
Type TR1300A
Temperature displaying type TFT
Power consumption 1300W
Working voltage 220V/110V AC
Tempera! are Range 10℃~500℃;/212F-932F
Airflow setting range 6~70L/7min
Dimension (WxDxH) 215x230x155 (mm)
Feature:
1.Multipoint temperature digital calibration,Password lock function.
2.Can preset technological parameter of three gallery, more practical.
3.Temperature alarm function, temperature changer.
4.Adopt two-stage supercharging brushless pump, air pressure stability, long life.
5.Set the parameters such as temperature, air velocity and time.
6.Ceramic heating element, plug type design.
7.With functions of temperature alarm
8.The parameters such as temperature, air velocity, time can be set up
9.Temperature stability, long service life and easy maintenance
10.ESD safe design,and with functions of ESD test
Product use:
1.It is suitable to the de-soldering of the SMD components, such as SOIC, CHIP, QFP, PLCC, BGA and so on.
2.It is suitable to hot shrink, drying, remove lacquer and mucosity, thaw, preheating, disinfect and so on.
3.It is suitable to the situation with different grade airflow.
4.It is suitable to the hot air lead free de-soldering.
