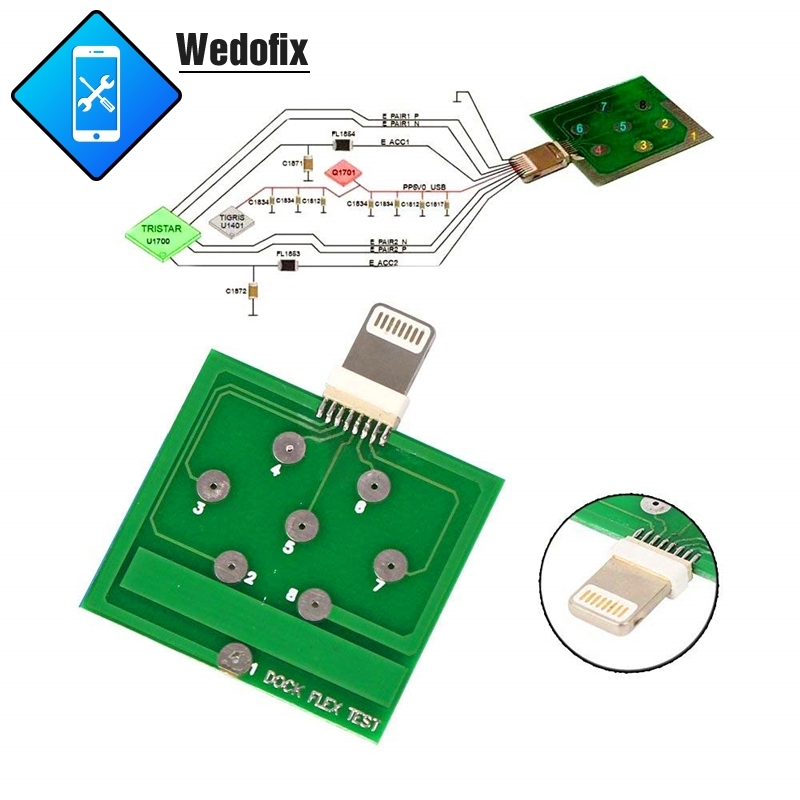

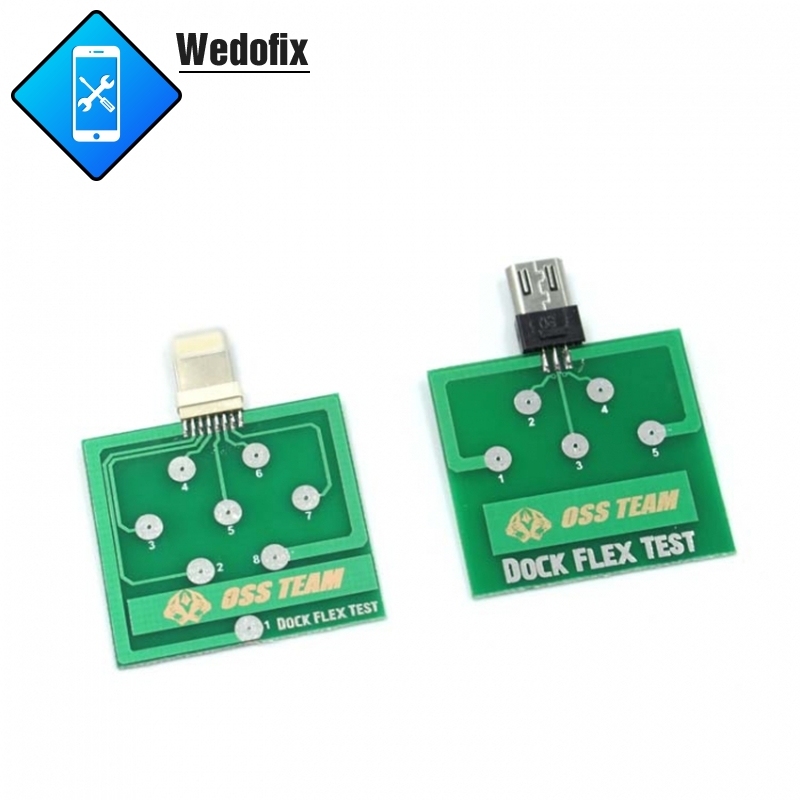

iPhone Android phone Micro Dock Flex Test Board
U2 IC Testing / Battery Test Testing / USB Charging Port Testing for iphone and Android phones, Micro Dock Flex Test Board for U2 IC / Battery bad or good / USD Charging Port diagnostic tool, Micro Dock Flex Test Board for iphone Android Phone U2 and Battery Testing
Usage: it is used for testing the mobile phone U2 IC, battery and charging port good / bad performance.
The charging port can offer the best solution without cell phone parts removal neccessory, you can plug the test board to tail plug directly, it's designed for both iPhone and Android models.
Application:
1. U2 IC Test
2. Battery Test
3. Charging Port Test
Test U2 / battery:
1.diode file, exchange red and black multimeter probe to measure value
2.Test charging port: diode file, exchange red and black multimeter probe to measure value
3. Supplementary explanation: Because the pin probe dislocation are too much, if necessary, please apply normal-working mobile phone measuring and recording, which will be convenient to compare with faulty phone and easier to judge the error
