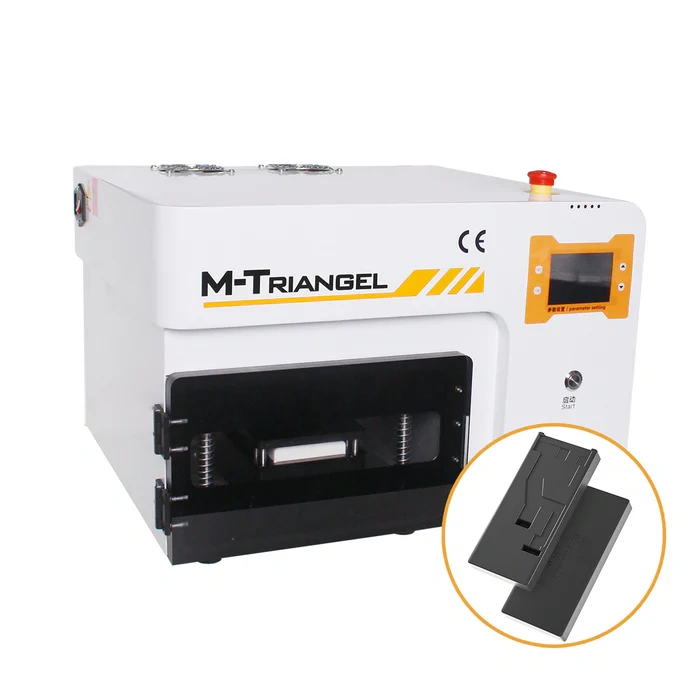

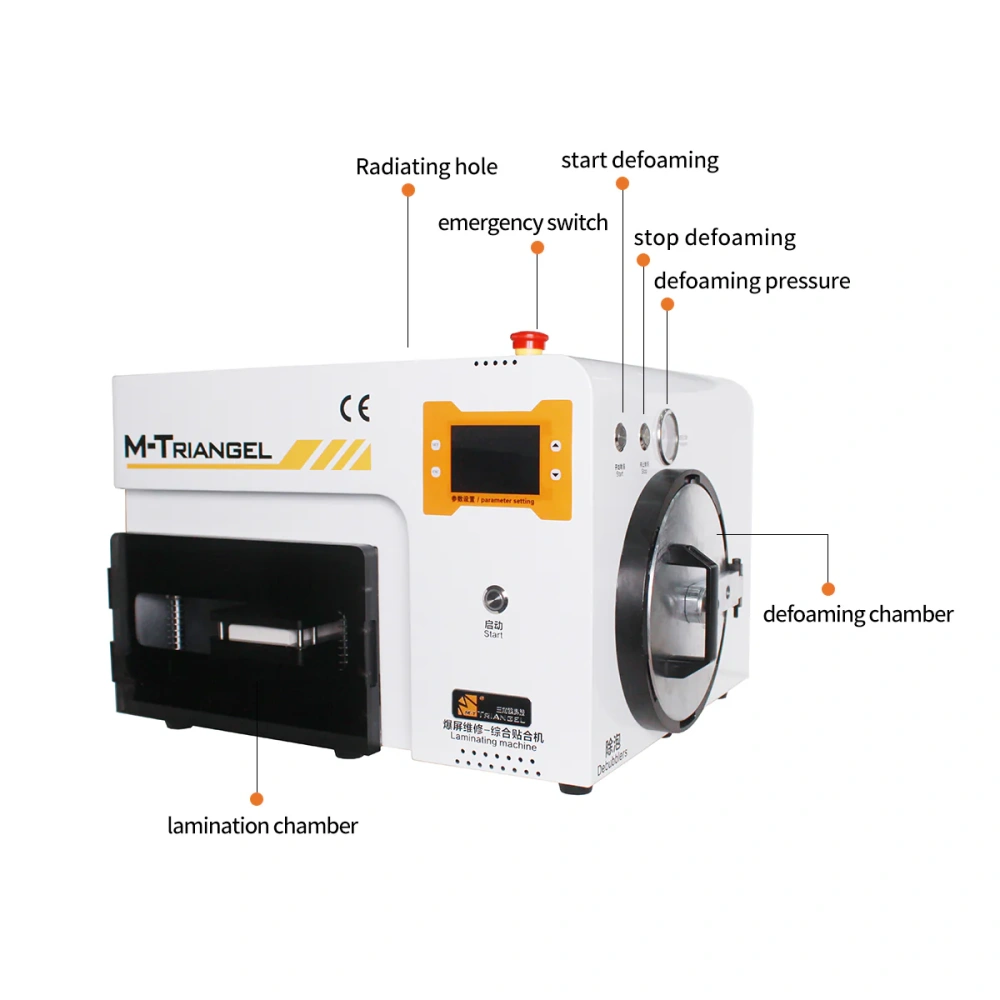

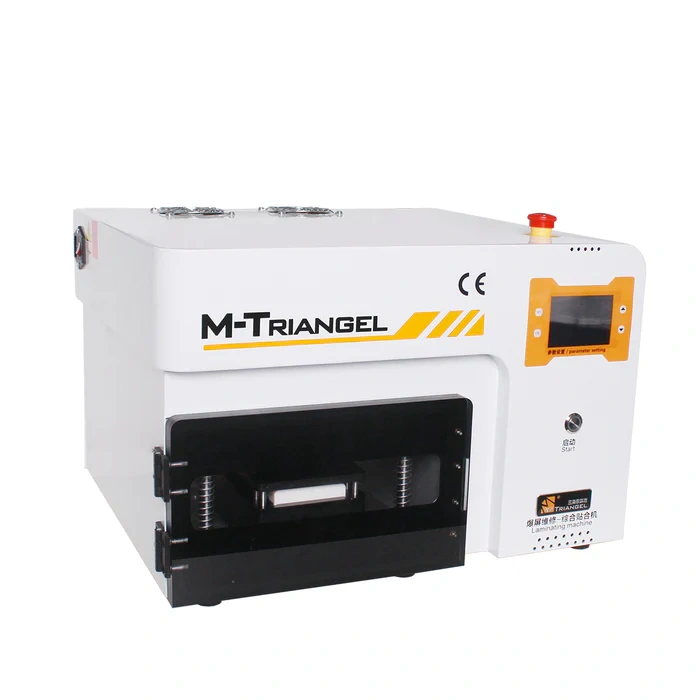

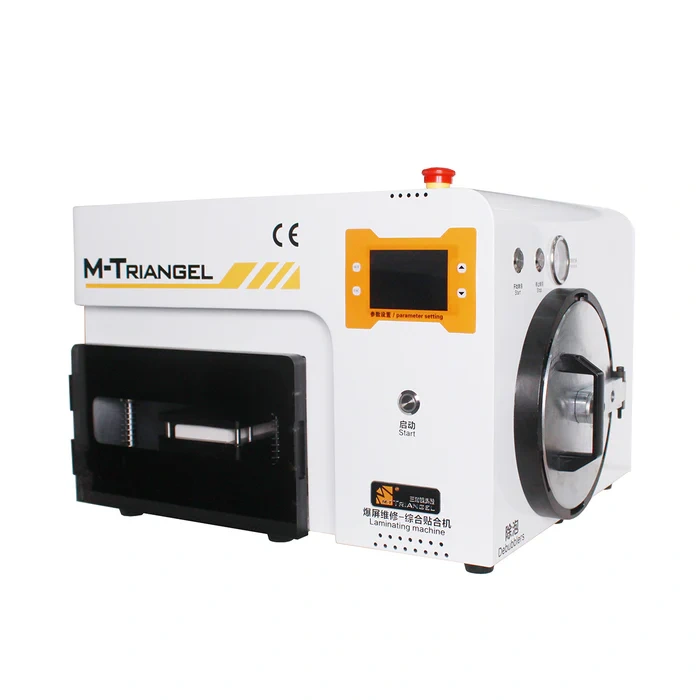

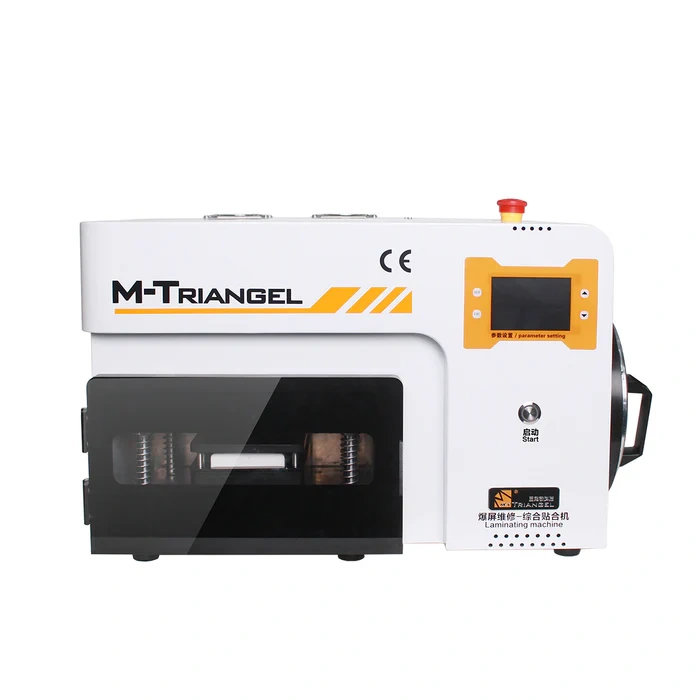

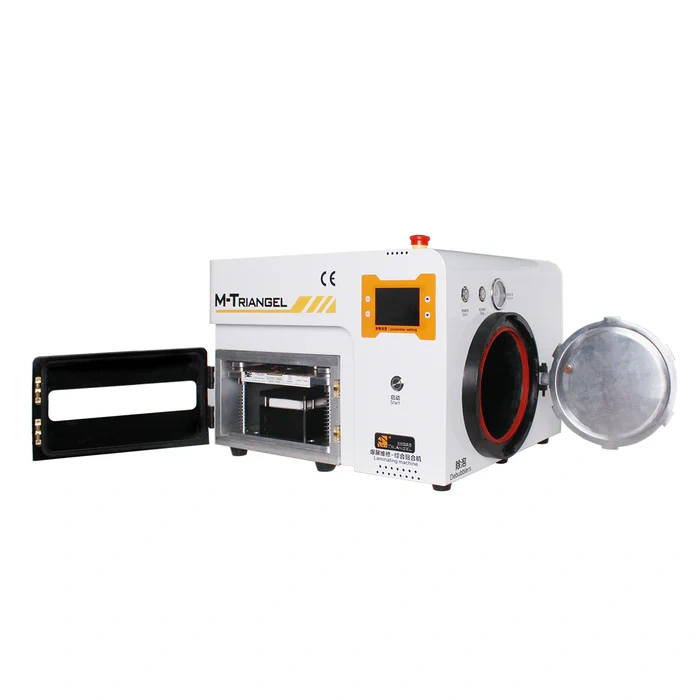

M-Triangel MT-103 5 in 1 OCA Laminating Machine with Bubble Remover Function for iPhone Samsung Screen Refurbish.
Product Features:
- Suitable for touch mobile phones screen within 9 inches (including edge curved and flat LCD)
- 5-in-1 all in one machine, built-in vacuum pump and air compressor
- Newly designed hatch, more secure, easy to operate, one key start, touch panel system control.
- Compatible with special mold for more precise alignment and more effective curved screen LCD repair
- 12 months warranty, online technical support and training is proved
Product Parameters:
- Lamination type: curved surface, flat pressing
- Production efficiency : 60s /4pcs (independent joint mode) an hour to 24PCS (defoaming assist mode)
- Heating mode: constant temperature heating
- Lamination time: suggest 60s
- Lamination temperature: suggest 35-45℃
- Defoaming time: suggest 10 minutes
- Defoaming temperature: suggest 40℃
- Lamination size: up to 9 inches LCD (20*16cm)
- Equipment size: 570*420*360 mm
- Cabin size: Deep 170 mm, Diameter 160 mm
- Power supply: AC220V/110V 1500W
- Equipment power: 800W
- Net weight: 56.5KG
- Shipping weight: 65KG
35 curve screen pads (optional):
- Samsung S8, S8+, S9, S9+, S10, S10+, S20, S20+, S20u, S21u, Note8, Note9, Note 10, Note 10+, Note20u,
- Xiaomi CC9 Pro, 10 Pro, 11,
- Huawei Nova7Pro/Honor 30, Nova8/V40 Lite, Nova8Pro/v40, P30Pro, P40Pro, MT20Pro, MT40, MT40Pro, RS Porsche
- OPPO Fand X, Fand X2, Reno 3Pro,4Pro, Reno 5 Pro
- VIVO NEX 3, X50 Pro
- OnePlus 8 Pro, 7 Pro
Packing list:
- 1× MT-103 Laminating Bubble Remove Machine
- 2× sealing ring
- 2× Flat lamination pads
- 35× curve lamination mats (optional only)
- 1× MT-17s wooden case
- 1× Instruction manual
- 1-year warranty
